Metal Momentary Normally Open Push Button Switch IP67 16MM 2 Pin Terminal

Name: Metal Momentary Normally Open Push Button Switch IP67 16MM 2 Pin Terminal
Brand: YUESHUN
Price: 1 USD

Brand Name : YUESHUN

Model Number : JS16F-10J/S

Certification : CE RoHS

Place of Origin : Wenzhou, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T to our company account or by paypal

Supply Ability : 5000Pcs/Day

Delivery Time : 3-7 work days

Packaging Details : The product is packed in foam box to prevent damage during transportation.

Max. Current : 2A

Max. Voltage : 36V DC

Protection Level : IP65

Mechanical life : More than1,000,000 cycles

Application : universal

Contact Configuration : 1NO

Contact Now

16MM 2 Pin Termlmal IP67 Metal Push Button Switch momentary push button switch normally Open

Product Description

- Push button switch are simple device. There are two key parts for the psuh button, the actuator and the contacts. The head actuator will go all the way through the switch. Inside is a movable silve plated contact and spring. When the actuator is activited, it touches with the stationary contacts, causing the action to take place.
- Latching/Self-locking Switch: Press the button switch, it works ; Press the button again ,switch stops working .

- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .
- Outside color: 1. Stainless steel 2. Nickle plated brass 3. Gold plated brasss 4. Black Zin-Al

Product Specification

Model Number	JS16F-10J/S
Mounting Hole	16 mm
Max.Switch Rating	Ith : 2A Ui : 36V DC
Material	Body Material : Stainless Steel
	Button Material :Stainless Steel
	Contact Material : Silver Alloy
	Base Material : PBT
The Front Shape	Flat Round Head
Terminal Type	2 Pin Termlmal( 2.8 * 0.5 MM )
Switch Operation	Momentary
Contact Configuration	Normal Open
Mounting panel thickness	1-6 mm
Operation Distance	About 1.5 mm
Protection Level	IP65
Operating Temp	-20℃～+55℃

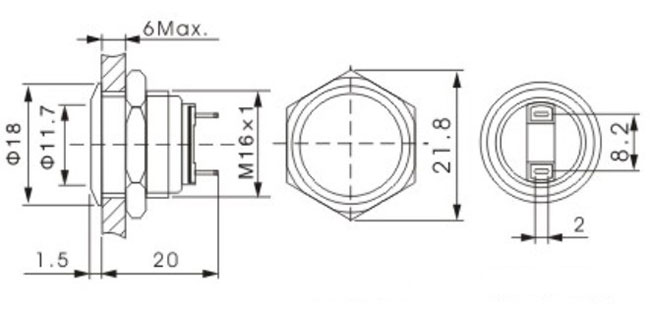

Size Drawing

Metal Momentary Normally Open Push Button Switch IP67 16MM 2 Pin Terminal
